ARI resolution heatmap#

bullkpy.pl.ari_resolution_heatmap(adata, *, df=None, store_key='leiden_scan', metric='ARI', show_n_clusters=True, cmap='viridis', vmin=None, vmax=None, figsize=None, title=None, save=None, show=True)[source]#

Heatmap-like summary of clustering quality vs Leiden resolution.

Expects df with at least:

‘resolution’
metric column: ‘ARI’ or ‘NMI’ or ‘cramers_v’

Optional:

‘n_clusters’ (for a second row annotation)

Example

df = bk.tl.leiden_resolution_scan(…) bk.pl.ari_resolution_heatmap(adata, df=df, metric=”ARI”)

Heatmap-style summary of clustering quality across Leiden resolutions.

This function visualizes the output of a Leiden resolution scan (e.g. from bk.tl.leiden_resolution_scan) and helps identify stable or optimal resolutions based on clustering quality metrics.

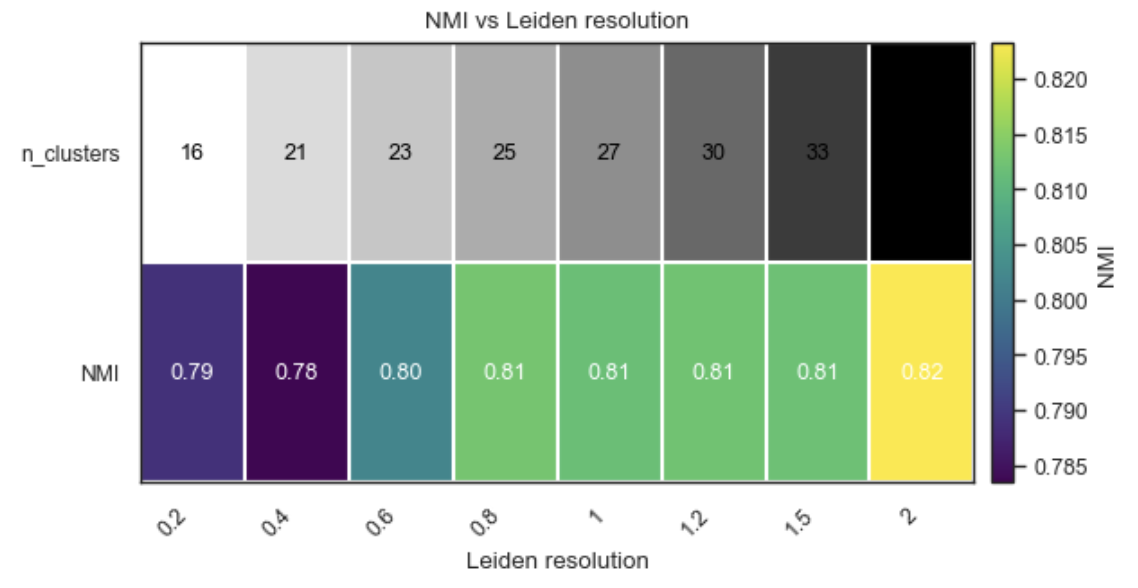

Example ARI resolution heatmap

What it does#

Displays clustering quality (e.g. ARI, NMI, or Cramér’s V) as a single-row heatmap across Leiden resolutions.

Optionally adds a second row showing the number of clusters
Annotates each cell with the metric value (and cluster count)
Designed to be compact, readable, and Scanpy-like.

This plot is ideal for resolution selection and reporting.

Expected input#

The function expects a DataFrame (either passed directly or stored in adata.uns) with at least:

column	description
resolution	Leiden resolution values
ARI / NMI / cramers_v	clustering quality metric

Optional:

column	description
n_clusters	number of clusters at each resolution

Such a table is produced by:

bk.tl.leiden_resolution_scan(adata, true_key=...)

Parameters#

adata
AnnData object. Used to retrieve results from adata.uns
if df is not provided.

df
DataFrame with resolution scan results.
If None, adata.uns[store_key] is used.

store_key
Key in adata.uns where resolution scan results are stored
(default: “leiden_scan”).

metric
Clustering quality metric to visualize.
Supported values:

“ARI”
“NMI”
“cramers_v”

show_n_clusters
If True and n_clusters is present, adds a second row showing the number of clusters.

cmap
Colormap for the metric heatmap.

vmin, vmax
Optional color scale limits for the metric.

figsize
Figure size in inches.
If None, a sensible size is inferred from the number of resolutions.

title
Optional plot title.

save
Path to save the figure (PDF/PNG/SVG).

show
Whether to immediately display the plot.

Returns#

(fig, ax)

fig: matplotlib Figure.
ax: matplotlib Axes.

Examples#

Basic ARI vs resolution plot

df = bk.tl.leiden_resolution_scan(
    adata,
    true_key="cell_type",
)

bk.pl.ari_resolution_heatmap(
    adata,
    df=df,
    metric="ARI",
)

Include number of clusters

bk.pl.ari_resolution_heatmap(
    adata,
    metric="ARI",
    show_n_clusters=True,
    title="Leiden resolution scan",
)

Use a different metric (Cramér’s V)

bk.pl.ari_resolution_heatmap(
    adata,
    metric="cramers_v",
    cmap="magma",
)

Fix color scale and save figure

bk.pl.ari_resolution_heatmap(
    adata,
    metric="ARI",
    vmin=0,
    vmax=1,
    save="leiden_resolution_ari.png",
)

Notes#

This function does not recompute clustering; it only visualizes results.
Designed for bulk and pseudobulk workflows, but works for single-cell too.
If sklearn was not available during the scan, ARI/NMI values may be NaN (Cramér’s V is always computed).
