QC pairplot#

bullkpy.pl.qc_pairplot(adata, *, keys=('total_counts', 'n_genes_detected', 'pct_counts_mt'), color='pct_counts_mt', log1p=('total_counts',), point_size=14.0, alpha=0.7, figsize=(8, 8), save=None, show=True)[source]#

Scatter-matrix (pairplot) of QC metrics in adata.obs.

Diagonal: histograms Off-diagonal: scatter plots

Scatter-matrix (pairplot) of QC metrics stored in adata.obs.

This function provides a compact, exploratory overview of how multiple QC metrics relate to each other, helping you quickly identify correlations, outliers, and problematic samples before filtering.

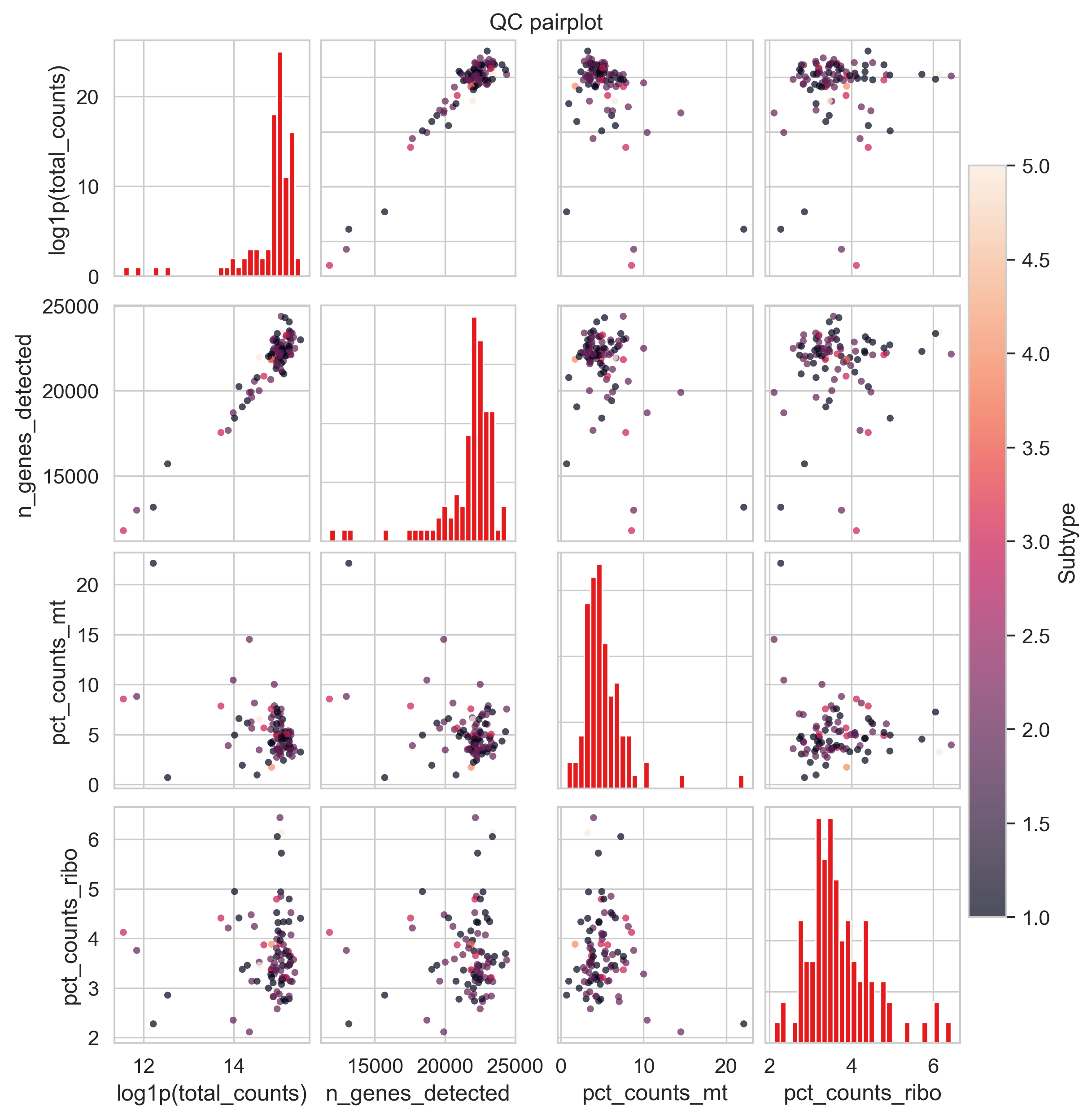

QC pairplot

Example QC pair plot

What it does#

For the QC metrics listed in keys, this function creates an n × n grid:

  • Diagonal panels: Histograms of each QC metric.

  • Off-diagonal panels: Scatter plots for every pairwise combination of metrics.

  • Optional coloring: Points can be colored by another QC metric (e.g. mitochondrial fraction).

This plot is particularly useful for:

  • Detecting correlations (e.g. library size vs detected genes)

  • Identifying QC-driven outliers

  • Choosing sensible filtering thresholds

Requirements#

All metrics in keys (and color, if provided) must exist in adata.obs.

Typically these are computed via:

bk.pp.qc_metrics(adata)

Parameters#

QC metrics#

keys (Sequence[str], default. (“total_counts”, “n_genes_detected”, “pct_counts_mt”)). QC metrics to include in the pairplot.
Determines both rows and columns of the grid.

Coloring#

color (str | None, default “pct_counts_mt”). Column in adata.obs used to color scatter points.

  • Must be numeric

  • If missing, coloring is disabled with a warning

Transformations#

log1p (Sequence[str], default (“total_counts”,)). Metrics that should be log1p-transformed before plotting.
Useful for highly skewed distributions.

Axis labels are automatically updated to reflect the transformation.

Point appearance#

point_size (float, default 14.0): Marker size for scatter plots.
alpha (float, default 0.7): Marker transparency (helps with overplotting).

Figure options#

figsize (tuple[float, float], default (8, 8)). Overall size of the square figure.

save (str | Path | None).
Path to save the figure.

show (bool, default True)
If True, calls plt.show().

Returns#

  • fig (matplotlib.figure.Figure): The full figure object.

  • axes (np.ndarray of matplotlib.axes.Axes). A 2D array of axes with shape (n_keys, n_keys).

Interpretation guide#

Common patterns to look for:

Strong diagonal correlation: total_counts vs n_genes_detected → expected positive relationship. High mt% at low counts/genes: potential low-quality or degraded samples.

Isolated points far from the main cloud: likely QC outliers worth inspecting or filtering.

This plot is best used before hard thresholding, as an exploratory tool.

Examples#

Default QC pairplot

bk.pl.qc_pairplot(adata)

Add more QC metrics

bk.pl.qc_pairplot(
    adata,
    keys=("total_counts", "n_genes_detected", "pct_counts_mt", "pct_counts_ribo"),
)

Disable coloring

bk.pl.qc_pairplot(
    adata,
    color=None,
)

Save without displaying

bk.pl.qc_pairplot(
    adata,
    save="qc_pairplot.png",
    show=False,
)
