Rankplot association#

bullkpy.pl.rankplot_association(*, res, gene_col='gene', effect_col='effect', sort_by='qval', direction='both', n_items=20, figsize=(7, 6), title=None, save=None, show=True)[source]#

Ranked barplot for categorical association results.

Behavior mirrors bk.pl.rankplot():

Upregulated / positive = red
Downregulated / negative = blue
Strongest up at top
Most downregulated LAST

Ranked bar plot for categorical association results.

This function visualizes gene–category association results (e.g. from gene_categorical_association, rank_genes_categorical, or similar) as a horizontal ranked bar plot, highlighting the strongest positive and negative effects.

The behavior mirrors bk.pl.rankplot, but is generalized to arbitrary association statistics (effect sizes).

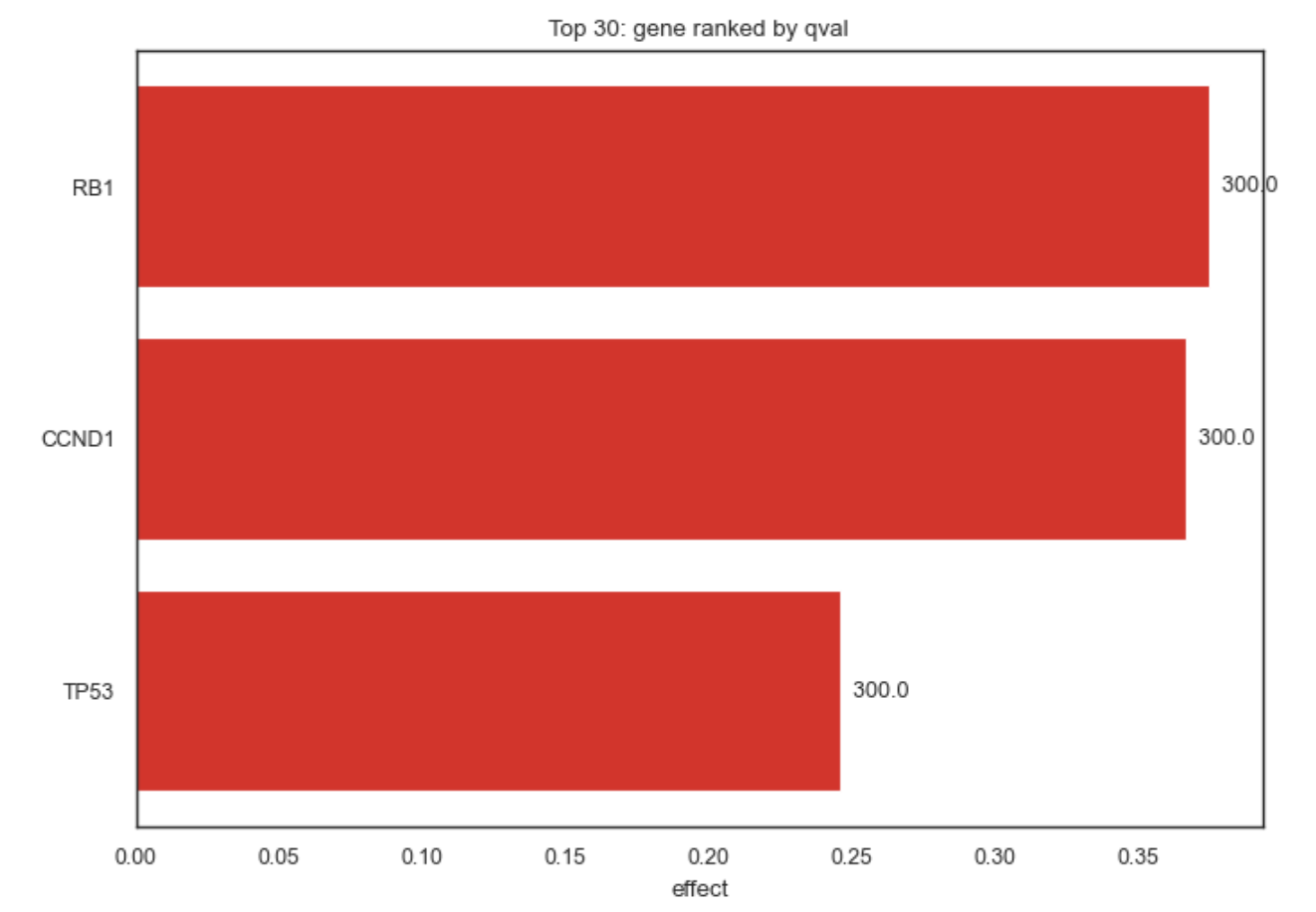

Example Rankplot Association

What it does#

Displays ranked effect sizes (e.g. log2FC, η², ε², mean differences)
Uses intuitive coloring: • Red → positive association • Blue → negative association
Ensures consistent ordering: • strongest positive effects at the top • strongest negative effects at the bottom
Supports up-only, down-only, or combined views

This plot is ideal for interpreting categorical association results and for producing publication-ready summaries.

Expected input#

A tidy pandas DataFrame with at least:

column	description
gene	gene or feature name
effect	effect size (signed)
qval / pval	statistical significance (optional)

The exact column names are configurable via parameters.

Parameters#

res
DataFrame with association results.

gene_col
Column name identifying genes/features (default: “gene”).

effect_col
Column containing signed effect sizes
(e.g. “log2FC”, “effect_size”, “eta2”).

sort_by
Column used to select top features: • “qval” • “pval” • same as effect_col

direction
Which effects to show: • “up” → positive effects only • “down” → negative effects only • “both” → split between up and down (default)

n_items
Total number of bars to display.

figsize
Figure size in inches.

title
Optional plot title.

save
File path to save the figure (PDF/PNG/SVG).

show
Whether to immediately display the plot.

Returns#

(fig, ax)

fig — matplotlib Figure
ax — matplotlib Axes

Examples#

Rank genes by q-value (default)

bk.pl.rankplot_association(
    res=assoc_df,
    effect_col="effect_size",
    sort_by="qval",
)

Positive associations only

bk.pl.rankplot_association(
    res=assoc_df,
    effect_col="log2FC",
    direction="up",
    n_items=15,
)

Negative associations only

bk.pl.rankplot_association(
    res=assoc_df,
    effect_col="log2FC",
    direction="down",
)

Rank purely by effect size

bk.pl.rankplot_association(
    res=assoc_df,
    effect_col="eta2",
    sort_by="eta2",
    title="Strongest categorical associations",
)

Save figure without displaying

bk.pl.rankplot_association(
    res=assoc_df,
    save="ranked_associations.pdf",
    show=False,
)

Notes#

Effect sizes must be signed for correct up/down coloring.
If sort_by ≠ effect_col, significance is used for selection, but bars are always ordered by effect size.
Designed to work seamlessly with: • gene_categorical_association • rank_genes_categorical • obs_categorical_association
