Gene Association Volcano#

bullkpy.pl.gene_association_volcano(adata, *, groupby, group, reference=None, layer='log1p_cpm', genes=None, method='mwu', effect='delta_mean', alpha=0.05, top_labels=12, figsize=(6.5, 5.5), title=None, save=None, show=True)[source]#
Effect-size aware volcano for categorical association:

x = effect size (delta_mean or delta_median between group vs reference/rest) y = -log10(q)

This is NOT a full DE method — it’s a fast association scan.

Effect-size aware volcano plot for a fast categorical gene–group association scan.

This function compares expression of each gene between:

  • a target group (group) defined by adata.obs[groupby], and

  • a reference group (reference) or all other samples (reference=None → "rest")

and visualizes:

  • x-axis: effect size (delta_mean or delta_median)

  • y-axis: significance as -log10(qval) (BH/FDR-corrected).

⚠️ This is not a full differential expression workflow (no model, no covariates, no library-size offsets). It’s designed as a quick screening/association plot.

Dotplot

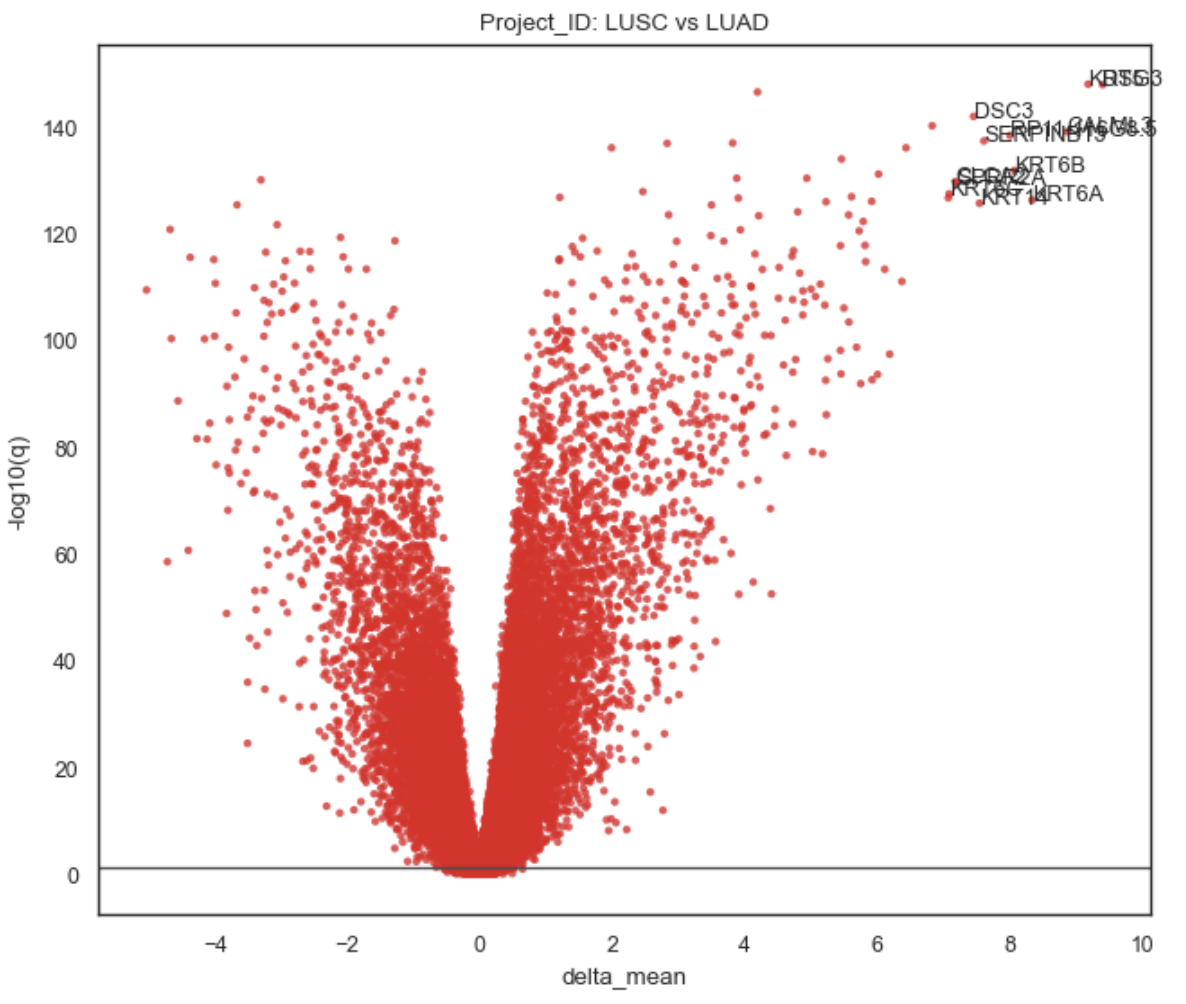

Example Gene Association Volcano plot

What it does#

Group masks

  • m1: samples where adata.obs[groupby] == group

  • m2: samples where:

    • reference is None → all samples not in group (“rest”)

    • otherwise adata.obs[groupby] == reference

Requires ≥ 2 samples in both m1 and m2.

Input matrix

Expression values are taken from:

  • adata.layers[layer] if layer is not None and exists

  • otherwise adata.X.

If genes is provided, it restricts to those genes (must exist in adata.var_names).

Per-gene test (current implementation)

  • method=”mwu”: two-sided Mann–Whitney U test (scipy.stats.mannwhitneyu) per gene.

This yields a raw pval per gene.

Effect size for plotting

Pick one:

  • effect="delta_mean":
    [
    \Delta = \mathrm{mean}(x_1) - \mathrm{mean}(x_2)
    ]

  • effect="delta_median":
    [
    \Delta = \mathrm{median}(x_1) - \mathrm{median}(x_2)
    ]

Multiple testing

Applies Benjamini–Hochberg FDR to pval → qval.

Then computes:
[
\text{neglog10q} = -\log_{10}(\max(qval, 1e{-300}))
]

Plot behavior#

  • Scatter of all genes: (effect, -log10(q))

  • Horizontal threshold line at q = alpha:
    [
    y = -\log_{10}(\alpha)
    ]

  • Title defaults to: “{groupby}: {group} vs {ref_name}”

Labeling (top_labels)

The function:

  1. takes the most significant genes (best q-values),

  2. then prioritizes largest absolute effect among those,

  3. and annotates up to top_labels genes.

Parameters#

Required#

adata
AnnData with adata.obs[groupby] and gene expression in adata.X or a layer.

groupby
Categorical obs column used to define groups.

group
The target category to test.

Common options#

reference

  • None (default): compare group vs all other samples (“rest”)

  • str: compare group vs that specific category only

layer
Expression source layer (default “log1p_cpm”). Use None to use adata.X.

genes
Subset of genes to test/plot (recommended for speed on large matrices).

effect
“delta_mean” (default) or “delta_median” for the x-axis.

alpha
FDR threshold used for the horizontal line.

top_labels
Number of gene labels to annotate.

save, show
Save to file and/or display the plot.

Returns#

(fig, ax, df)

  • fig, ax: Matplotlib objects

  • df: tidy results table with columns:

    • gene

    • effect

    • pval

    • qval

    • neglog10q.

Sorted by qval (best first).

Notes / tips#

  • Use a normalized/log layer for layer (e.g. “log1p_cpm”) so effect sizes are comparable across samples.

  • If you want a more “DE-like” effect, consider using effect="delta_median" for robustness.

  • For proper DE with covariates, batch correction, and count models, use your GLM/NB-DE functions instead of this scan.

Examples#

Group vs rest (default)

fig, ax, df = bk.pl.gene_association_volcano(
    adata,
    groupby="Subtype",
    group="Basal",
    layer="log1p_cpm",
)

Group vs specific reference

fig, ax, df = bk.pl.gene_association_volcano(
    adata,
    groupby="Subtype",
    group="Basal",
    reference="Luminal",
    layer="log1p_cpm",
    effect="delta_median",
    alpha=0.01,
)

Restrict to a gene panel

panel = ["ASCL1", "NEUROD1", "POU2F3", "YAP1", "DLL3"]
fig, ax, df = bk.pl.gene_association_volcano(
    adata,
    groupby="Subtype",
    group="Basal",
    genes=panel,
    top_labels=5,
)
