Rankplot#

bullkpy.pl.rankplot(adata=None, *, res=None, uns_key=None, contrast=None, n_genes=20, sort_by='qval', direction='both', fc_col=None, figsize=(7, 6), title=None, save=None, show=True)[source]#

Ranked horizontal barplot of top DE genes (up/down).

  • Upregulated bars: red

  • Downregulated bars: blue

  • sort_by supports: qval, pval, log2FC

  • For direction=”both”: top shows strongest upregulated; bottom shows strongest downregulated (last).

Ranked horizontal barplot of top differentially expressed genes.

This plot is useful to quickly inspect the strongest upregulated and/or downregulated genes from a DE result table (typically produced by bk.tl.de()).

  • Upregulated bars: red

  • Downregulated bars: blue

  • Supports ranking by q-value, p-value, or log2FC.

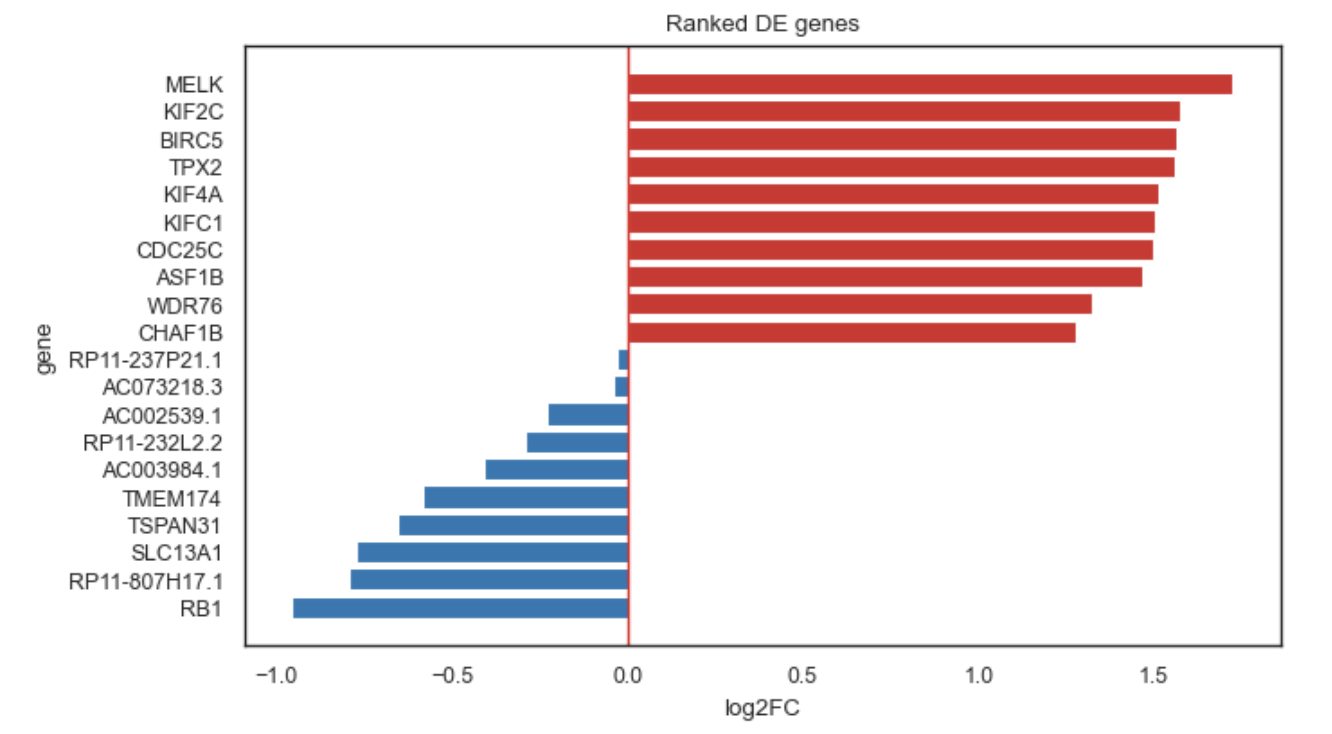

Rankplot example

Example rankplot.

What it does#

  • Selects the top genes according to:

  • Significance (default: sort_by=”qval”), or

  • Effect size (sort_by=”log2FC”)

  • Filters by direction:

    • “up”: only positive fold-change genes

    • “down”: only negative fold-change genes

    • “both”: split between up and down

  • Orders bars Scanpy-like:

  • Top of the plot: strongest upregulated (largest positive log2FC)

  • Bottom of the plot: most downregulated (most negative log2FC) is last

Inputs#

You can provide DE results in two equivalent ways:

A) Directly via res#

A dataframe with at least:
• gene column (or first column used as gene name) • log2FC (or logFC) • qval / pval (depending on sort_by)

B) From adata.uns#

If you ran DE storing results in adata.uns, use:

  • adata + uns_key and/or contrast

Parameters#

Result source#

adata
AnnData object containing stored DE results in .uns (optional if res is provided).

res
DE results dataframe (optional if adata + uns_key are provided).

uns_key
Key inside adata.uns where DE tables are stored.

contrast
Which contrast to plot (if DE results store multiple contrasts).

Ranking & selection#

n_genes
Number of genes to display.

sort_by
How genes are selected:
• “qval” (default): most significant first • “pval”: most significant first • “log2FC”: strongest effects first

direction
Which direction to include: • “up”: only positive log2FC • “down”: only negative log2FC • “both”: mix of up + down (split roughly half/half)

fc_col
Fold-change column. If None, automatically detects: • “log2FC” if available, else “logFC”

Plot and output#

figsize
Matplotlib figure size.

title
Title override.

save
Save path for the figure.

show
If True, calls plt.show().

Returns#

•	fig — matplotlib.figure.Figure
•	ax — matplotlib.axes.Axes

Examples#

Plot top genes from a DE dataframe#

fig, ax = bk.pl.rankplot(
    res=res,
    n_genes=30,
    sort_by="qval",
    direction="both",
)

Upregulated only (largest positives first)#

bk.pl.rankplot(
    res=res,
    direction="up",
    n_genes=20,
)

Downregulated only (most negative is last)#

bk.pl.rankplot(
    res=res,
    direction="down",
    n_genes=20,
)

Rank purely by effect size#

bk.pl.rankplot(
    res=res,
    sort_by="log2FC",
    direction="both",
    n_genes=40,
)

Notes#

•	If sort_by="qval" or "pval", genes are selected by significance first, then ordered by fold-change for display.
•	If sort_by="log2FC", genes are selected directly by the magnitude and sign of fold-change.
•	This function is complementary to pl.volcano(), which shows all genes at once.

See also#

•	pl.volcano
•	tl.de
•	pl.rankplot_association
