QC by group#

bullkpy.pl.qc_by_group(adata, *, groupby, keys=('total_counts', 'n_genes_detected', 'pct_counts_mt', 'pct_counts_ribo'), kind='violin', log1p=('total_counts',), figsize=(11, 4), rotate_xticks=45, save=None, show=True, show_n=True)[source]#

Plot QC metrics grouped by a metadata column in adata.obs (e.g. batch, cohort).

Grouped QC metric distribution plots for bulk RNA-seq (or pseudo-bulk) samples.

This function visualizes how standard QC metrics vary across levels of a categorical metadata variable (e.g. batch, cohort, condition), making it easy to detect systematic quality differences between groups.

QC by group

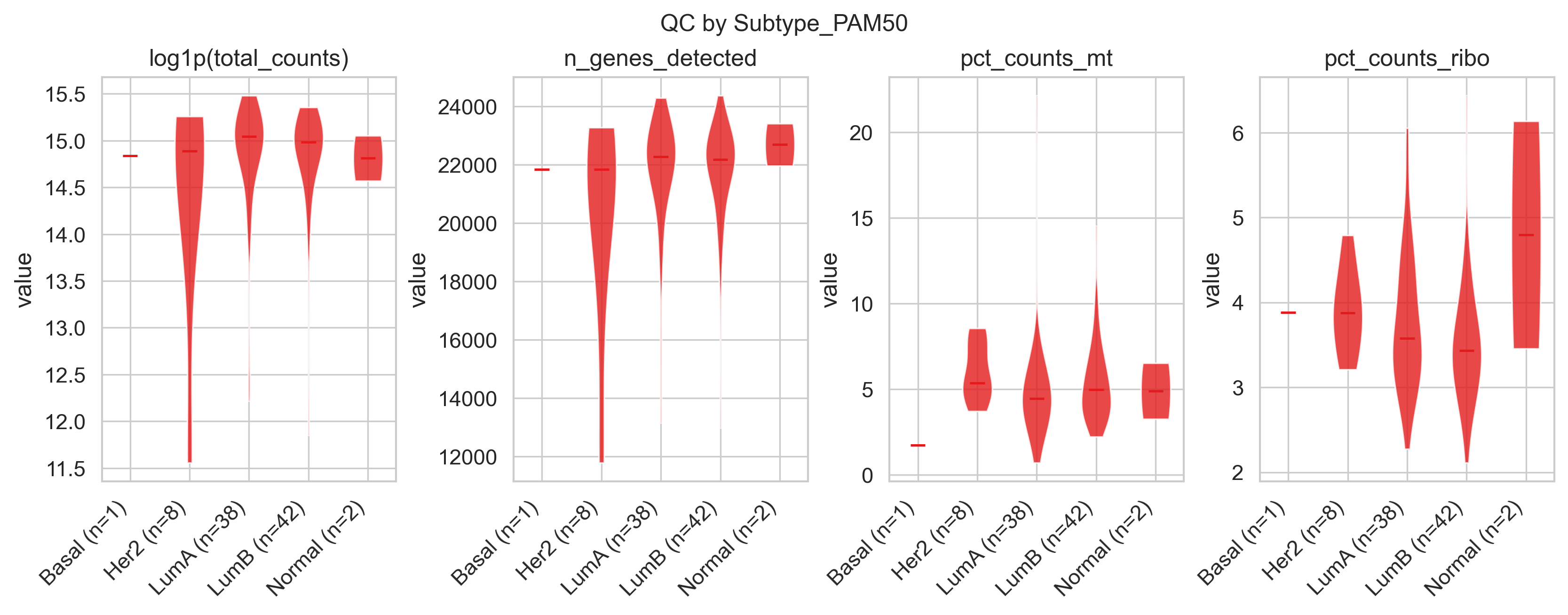

Example QC by group

What it does#

For each QC metric in keys, this function:

  1. Groups samples by adata.obs[groupby].

  2. Plots one panel per metric.

  3. Shows the distribution per group as either:

  • violins (default), or

  • boxplots.

  1. Optionally log-transforms selected metrics.

  2. Annotates group labels with sample counts.

This is especially useful for:

  • Batch effect diagnostics

  • Comparing cohorts or experimental conditions

  • Detecting QC-driven confounding before downstream analysis

Requirements#

  • groupby must be a categorical column in adata.obs

  • Each entry in keys must exist in adata.obs.

Typically, these metrics are created by:

bk.pp.qc_metrics(adata)

Parameters#

Grouping#

**groupby ** (str, required). Categorical column in adata.obs used to group samples (e.g. “Batch”, “Cohort”, “Platform”).

QC metrics#

keys (Sequence[str], default.
(“total_counts”, “n_genes_detected”, “pct_counts_mt”, “pct_counts_ribo”)) QC metrics to plot, one panel per metric.

Each key must exist in adata.obs.

Plot type#

kind (“violin” | “box”, default “violin”).
Type of distribution plot:

  • “violin” : shows full distribution shape + median

  • “box” →: compact summary (quartiles, median).

Transformations#

log1p (Sequence[str], default (“total_counts”,)). Metrics that should be transformed using log1p before plotting.

Useful for highly skewed variables such as library size.

Layout and labels#

figsize (tuple[float, float], default (11, 4)). Overall figure size.

rotate_xticks (int, default 45). Rotation angle for group labels.

show_n (bool, default True). If True, appends sample counts to group labels (e.g. Batch1 (n=24)).

Output#

save (str | Path | None): Path to save the figure. show (bool, default True): If True, calls plt.show().

Returns#

  • fig (matplotlib.figure.Figure). The figure object.

  • axes (list[matplotlib.axes.Axes]). One axis per QC metric, in the same order as keys.

Interpretation guide#

Shifted distributions between groups: potential batch or cohort effects.

Higher mt% or lower gene counts in a group: degraded RNA or sample preparation issues.

Broader distributions in one group: increased technical variability.

These plots are most informative before filtering, to guide threshold selection or batch-aware QC decisions.

Examples#

Default QC comparison by batch

bk.pl.qc_by_group(adata, groupby="Batch")

Boxplots instead of violins

bk.pl.qc_by_group(
    adata,
    groupby="Cohort",
    kind="box",
)

Custom metrics and transformations

bk.pl.qc_by_group(
    adata,
    groupby="Platform",
    keys=("total_counts", "pct_counts_mt"),
    log1p=("total_counts",),
)

Save without displaying

bk.pl.qc_by_group(
    adata,
    groupby="Batch",
    save="qc_by_batch.png",
    show=False,
)
