Gene Association#

bullkpy.pl.gene_association(adata, *, gene, groupby, layer='log1p_cpm', kind='violin', order=None, rotate_xticklabels=45, figsize=None, panel_size=(4.2, 3.2), show_points=True, point_size=2.0, point_alpha=0.35, palette='Set2', annotate_posthoc=True, posthoc_method='mwu', posthoc_alpha=0.05, max_brackets=6, bracket_height=0.06, save=None, show=True)[source]#

Gene vs categorical obs association plot (Scanpy-like panels).

  • gene can be a string or list of genes -> row of panels

  • violin/box + optional strip points

  • optional automatic pairwise post-hoc + significance brackets (BH corrected)

Returns (fig, axes).

Gene-vs-category expression plot with optional pairwise post-hoc testing.

This helper makes Scanpy-like panels showing the distribution of one gene (or multiple genes) across the categories of a categorical obs column. It supports violin or box plots, optional jittered points, and optional pairwise post-hoc tests annotated as significance brackets.

Gene association

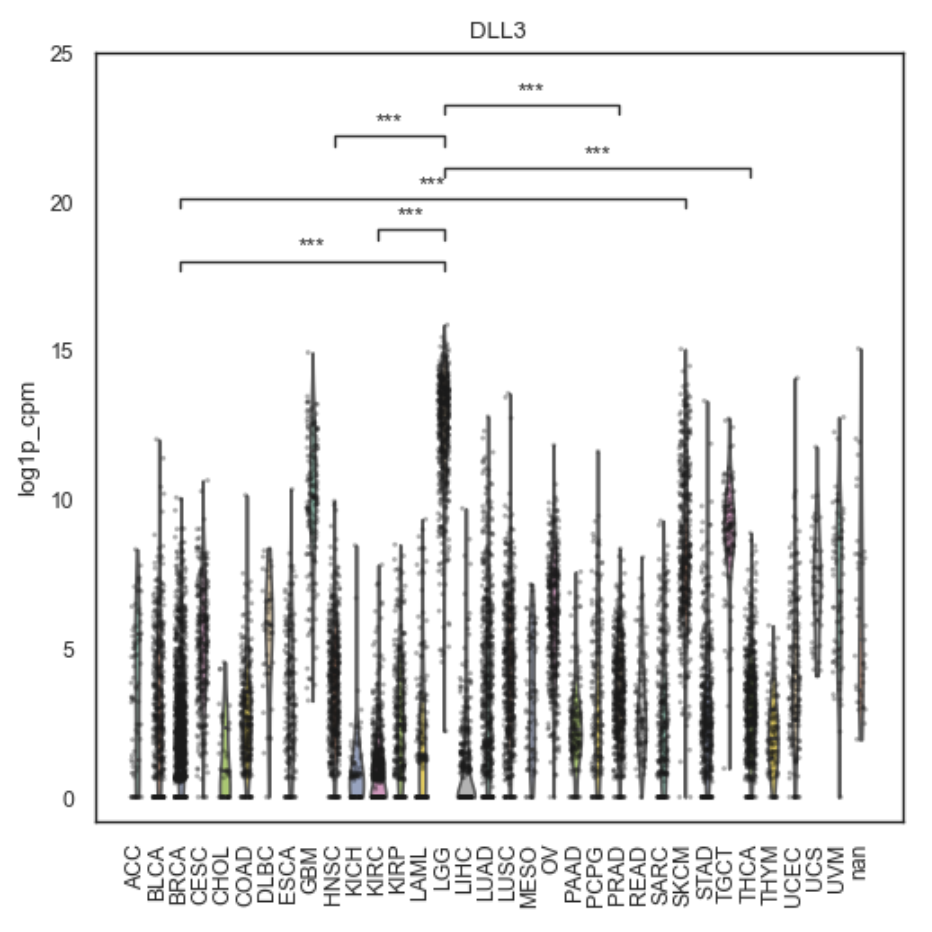

Example Gene Association plot

What it does#

1) Selects groups

  • Uses adata.obs[groupby] converted to strings.

  • Category order:

    • If order is None: uses the categorical order from pd.Categorical(grp).categories

    • Else: uses order exactly (as strings).

2) Extracts expression for each gene

For each gene panel, it calls: _get_gene_vector(adata, g, layer=layer).

Expression is then plotted per category.

3) Plots distribution per group

Using seaborn:

  • kind=”violin” → sns.violinplot(..., cut=0, inner="quartile")

  • kind=”box” → sns.boxplot(...)

Optional points overlay:

  • sns.stripplot(..., jitter=0.25, color="k")

Axis formatting:

  • Title = gene name

  • y-label = “Expression” if layer is None, else the layer name

  • x-label removed

  • tick rotation controlled by rotate_xticklabels

4) Optional post-hoc pairwise tests + brackets

If annotate_posthoc=True and there are ≥2 categories:

  1. Runs pairwise tests with BH correction:

post = pairwise_posthoc(
    df, group_col="grp", value_col="y",
    method=posthoc_method, correction="bh"
)

  1. Adds significance brackets for the most significant comparisons:

_add_brackets(
    ax, post,
    order=cats,
    alpha=posthoc_alpha,
    max_brackets=max_brackets,
    bracket_height=bracket_height,
)

If post-hoc annotation fails for a gene, it emits a warning and continues plotting.

Parameters#

Required#

adata
AnnData object containing expression and metadata.

gene
str or sequence of strings. If multiple genes are provided, a row of panels is created.

groupby
Categorical adata.obs key defining groups on the x-axis.

Expression source#

layer
Layer name to pull expression from. If None, _get_gene_vector should fall back to adata.X.

Plot controls#

kind
“violin” (default) or “box”.

order
Explicit category order for groupby. Useful for controlling display order.

rotate_xticklabels
Rotation (degrees) for x tick labels (default 45).

figsize
Full figure size. If None, computed as (panel_size[0] * n_genes, panel_size[1]).

panel_size
Per-panel size used when figsize=None.

palette
Seaborn palette name (default “Set2”).

Points overlay#

show_points
Add jittered points with stripplot.

point_size, point_alpha
Styling for points.

Post-hoc annotation#

annotate_posthoc
If True, compute all pairwise comparisons and add brackets.

posthoc_method
“mwu” (Mann–Whitney U, two-sided) or “ttest” (Welch t-test), passed to pairwise_posthoc.

posthoc_alpha
Significance threshold on BH-adjusted qval used for bracket display.

max_brackets
Maximum number of brackets to draw per panel (prevents clutter).

bracket_height
Vertical spacing factor for bracket stacking.

Output controls#

save
If provided, saves the figure to this path.

show
If True, calls plt.show().

Returns#

(fig, axes)

  • fig: Matplotlib Figure

  • axes: np.ndarray of Axes (even if only one gene).

Output interpretation#

  • Each panel shows the distribution of expression across groups.

  • If post-hoc is enabled, brackets indicate significant pairwise differences:

    • computed with pairwise_posthoc(…)

    • corrected with Benjamini–Hochberg (BH/FDR)

    • displayed for comparisons with qval <= posthoc_alpha (up to max_brackets)

Notes / tips#

  • Use a comparable expression layer (e.g. “log1p_cpm”) if you want interpretability across samples.

  • For many categories, consider setting max_brackets lower (e.g. 3–5) to keep the plot readable.

  • If you want a robust comparison against outliers, prefer posthoc_method=”mwu”.

Examples#

Single gene

fig, axes = bk.pl.gene_association(
    adata,
    gene="DLL3",
    groupby="Subtype",
    layer="log1p_cpm",
    kind="violin",
)

Multiple genes in one row

fig, axes = bk.pl.gene_association(
    adata,
    gene=["ASCL1", "NEUROD1", "POU2F3", "YAP1"],
    groupby="Subtype",
    layer="log1p_cpm",
    panel_size=(4.0, 3.2),
)

Enforce category order + Welch t-test posthoc

fig, axes = bk.pl.gene_association(
    adata,
    gene="SOX10",
    groupby="Subtype",
    order=["Luminal", "Basal", "NE-like"],
    posthoc_method="ttest",
    posthoc_alpha=0.01,
    max_brackets=4,
)
